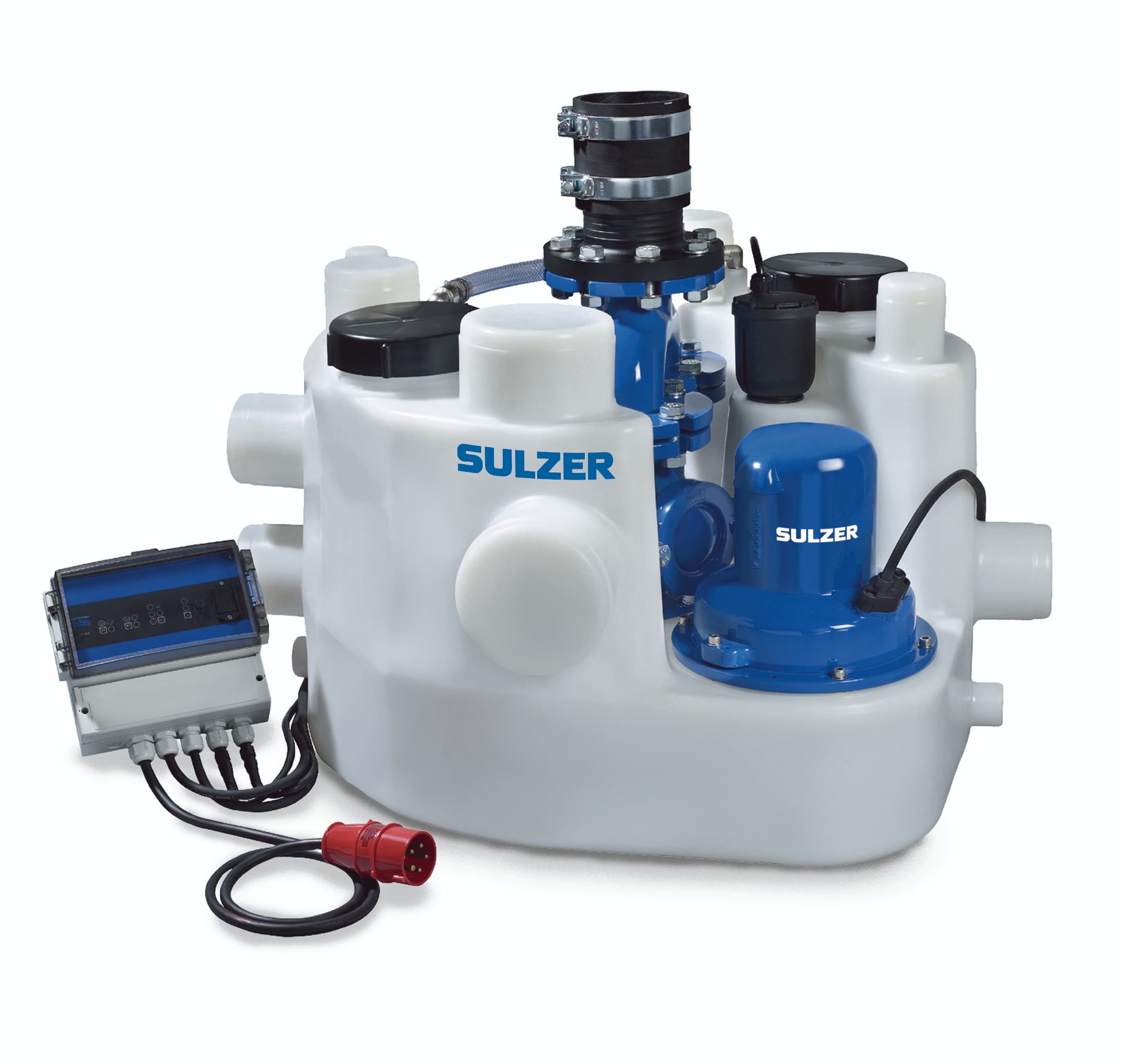

Lifting station type ABS Sanimat 1002

Ideal for sewage pumping in residential areas

The Sanimat 1002 is a flood-proof double lifting station for automatic sewage pumping from areas below the backwash level in accordance with EN 12050-1. It is ideal for effective sewage removal from apartments, large buildings, and for both new and renovated structures.

MAIN BENEFITS

Ready for installation

Compact, robust polyethelyne collection tank

Easily transported and fitted with simple discharge line connection

Problem-free pumping of sewage and wastewater

Dynamic pressure level sensor on the tank, with separate sensors for inflow level and high-water alarm

MAIN APPLICATIONS

Pumping of sewage and wastewater containing fecal matter

  1. Integrated valve system consisting of ball-type non-return valve
  2. Very quiet running thanks to slow-running four-pole motor
  3. Plug-in unit with CEE plug (400 V) and phase sequence changeover facility
  4. Vortex impeller with large free passage and rear blade mounting, for reliable pumping of both fecal and fecal-free sewage
  5. Corrosion-resistant, gas- and odor-tight polyethelyne tank, in accordance with EN 12050-1. Supplied as standard with pumps, non-return valves, and control panel with automatic level control and alarm

Capacity

55 m³/h (242 US gpm)

Head

9.5 m (31 ft)

Temperatures

40° C (maximum 60° C for five minutes)

Discharge sizes

Discharge flange DN 80, plus flanged socket with 4” sleeve and clips (for discharge pipe DN 80/100)

Maximum speed of rotation

1,450 min-1

Technical Data Sheet – Lifting Station Type ABS Sanimat 1002

Sanimat_1002_TDS_EN
