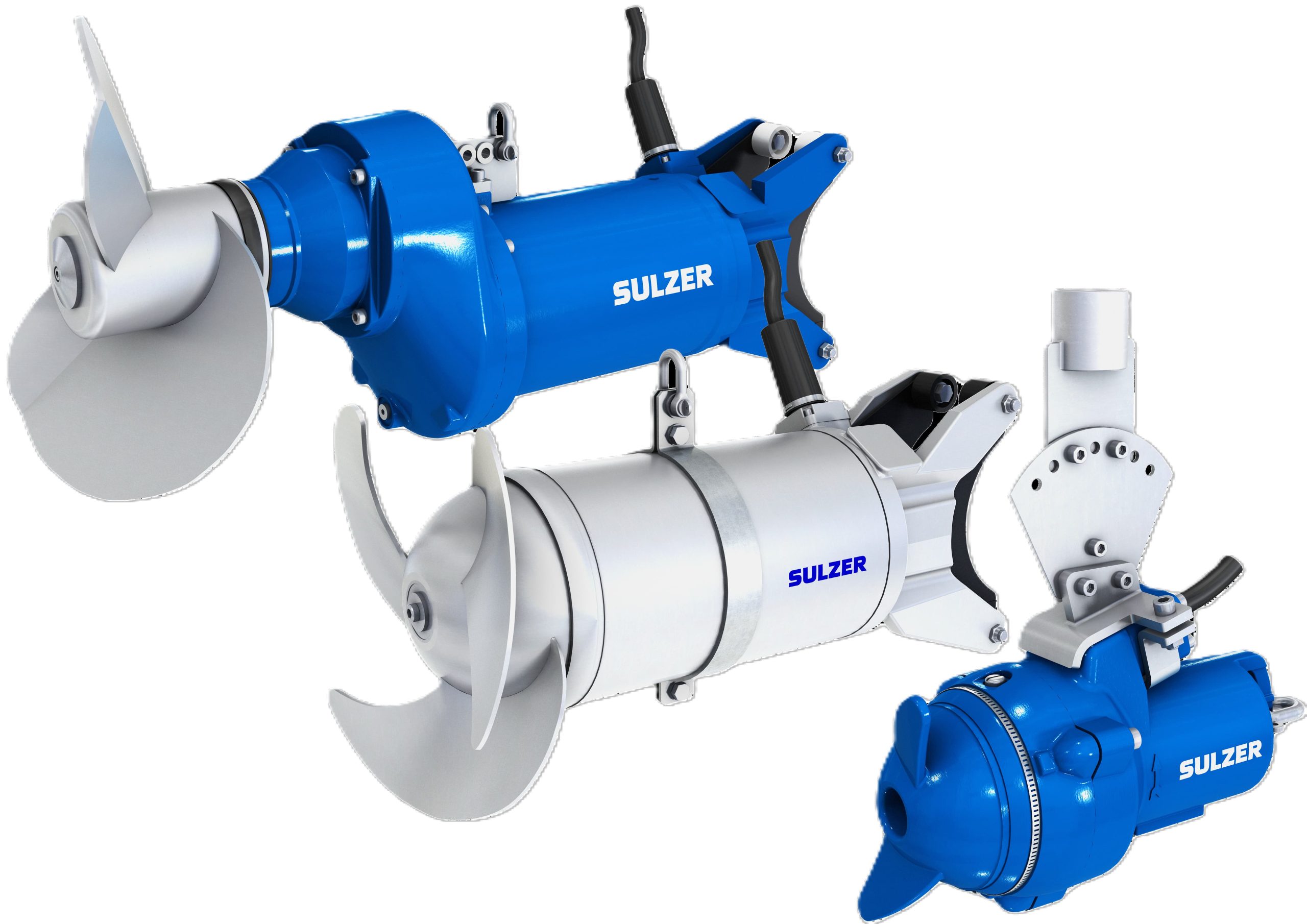

Submersible mixer type ABS RW

Compact, versatile submersible mixers

The RW is Sulzer’s standard range of submersible mixers, economical without compromising on reliable design. These compact, versatile submersible mixers are ideal for agitating, blending, mixing, dissolving, and suspension of solids in municipal treatment plants, industry, and agriculture. The RW mixers can easily be fitted to existing guiderails and lifting devices without modification, using our wide range of brackets and adapters.

MAIN BENEFITS

Compact, water pressure-tight design

Reduced energy costs

Shorter mixing times

Minimal risk of motor overloading

Easy installation

Small space requirements

MAIN APPLICATIONS

Mixing and stirring applications in sewage treatment plants and industrial areas

Homogenization of highly-concentrated sludge and slurries

Hazardous locations ATEX (Ex II 2G Ex h db IIB T4 Gb), FM and CSA available as an option

  1. Patented solids deflection ring
  2. Blockage-free propeller
  3. Integral motors ranging from 1.3 to 13 kW (1.7 – 17.5 hp)
  4. RW 200 is mainly used for mixing applications in pump sumps
  5. Multiple and gear-driven mixers with standard or explosion-proof motor enclosures
  6. Support includes literature and computer software for sizing and design of each installation

Maximum mixing flow

0,83 m³/s (14,600 US gpm)

Maximum propeller diameter

650 mm (25.6 in)

Motor power

1.3 – 13 kW

Technical Data Sheet – Submersible mixer type ABS RW 200 & 280

RW_200_280_TDS_EN

Technical Data Sheet – Submersible mixer type ABS RW 300

RW_300_TDS_EN

Technical Data Sheet – Submersible mixer type ABS RW 400

RW_400_TDS_EN

Technical Data Sheet – Submersible mixer type ABS RW 480

RW_480_TDS_EN

Technical Data Sheet – Submersible mixer type ABS RW 650

RW_650_TDS_EN

Technical Data Sheet – Submersible mixer type ABS RW 900

RW_900_TDS_EN

Technical Data Sheet – Submersible mixer type ABS RW 7511

RW_7511_TDS_EN
