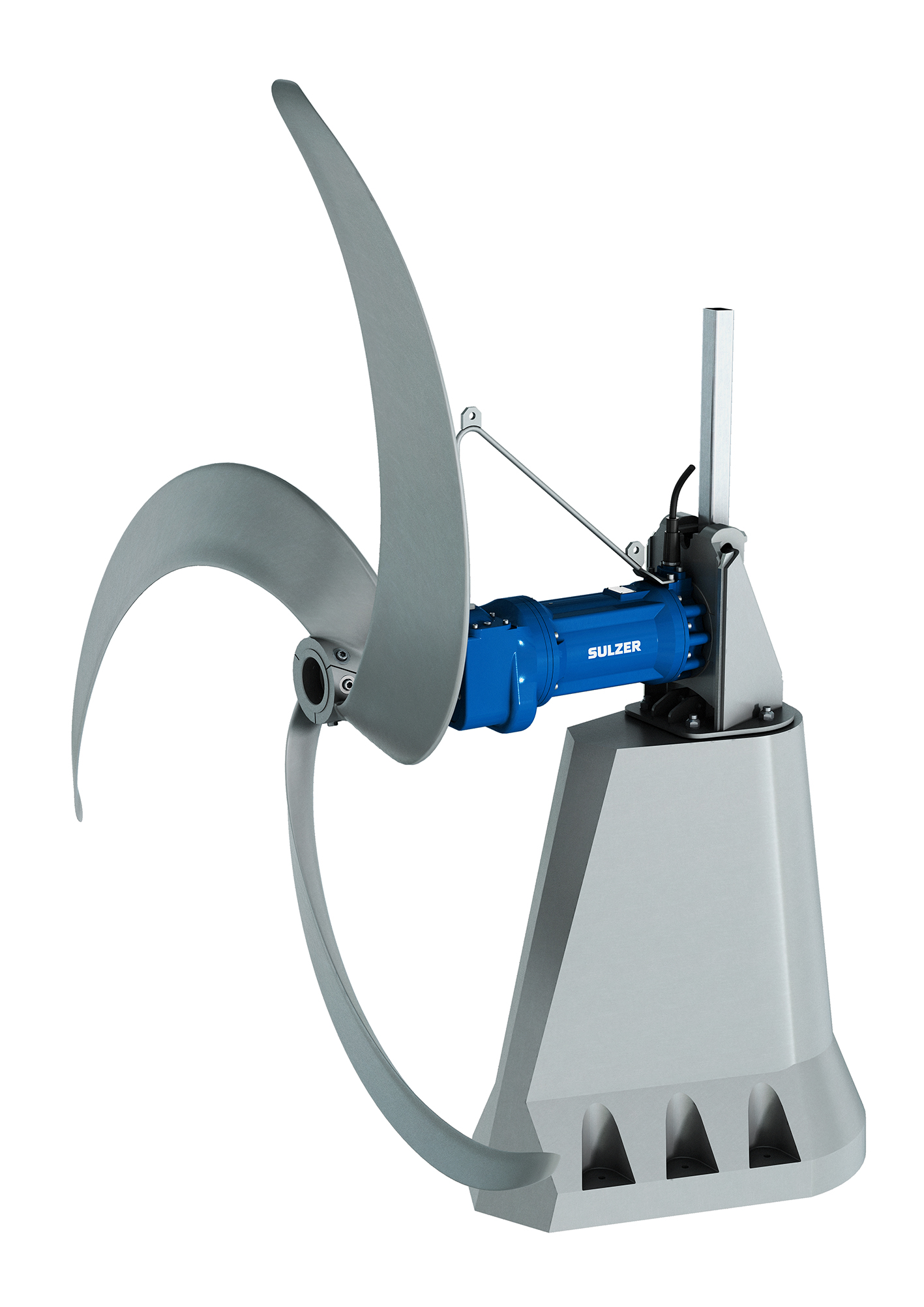

Flow booster type ABS XSB

Exceptional low-speed efficiency

The complete answer to low-speed, highly energy efficient submersible mixing in a wide range of applications in industry and municipal treatment plants. This slow-speed submersible unit is available with integral IE3 Premium Efficiency motors ranging from 1.0 to 7.5 kW (7.4 to 10.1 hp) for gentle circulation and mixing of fluids.

MAIN BENEFITS

Lowest energy consumption

Compact, water pressure-tight design

Provides high thrust and high flow capacity

Self-cleaning propellers provides vibration-free operation

Increased performance variations with an extended and wide duty range

Superior reliability and long operating life

MAIN APPLICATIONS

Providing a flow pattern in large tanks and open waters for mixing and stirring

Wastewater treatment plants and industrial applications

  1. Designed for high reliability in challenging mixing applications.
  2. Award-winning, patented high-efficiency propeller that offers up to 20% efficiency improvement over standard designs.
  3. Patented concrete pedestal, designed to efficiently absorb vibration and improve reliability.
  4. Fully-lockable patented coupling system allows easy lifting or lowering for inspection even when tanks are full.
  5. Smart features such as seal monitoring inform preventative maintenance decisions.
  6. Premium efficiency motors provide exceptional performance for gentle circulation as well as mixing of fluids in wastewater treatment plants and industrial applications.

Maximum mixing flow

6.2 m³/s (95,200 US gpm)

Maximum propeller diameter

2,750 mm (9 ft)

Technical Data Sheet – Flow booster type ABS XSB 900 M

XSB_900_M_TDS_EN

Technical Data Sheet – Flow booster type ABS XSB 1600 to 2500 M

XSB_1600_2500_M_TDS_EN

Technical Data Sheet – Flow booster type ABS XSB 1400 to 2750 LX

XSB_1400_2750_LX_TDS_EN

Flow booster type ABS XSB VIDEO
