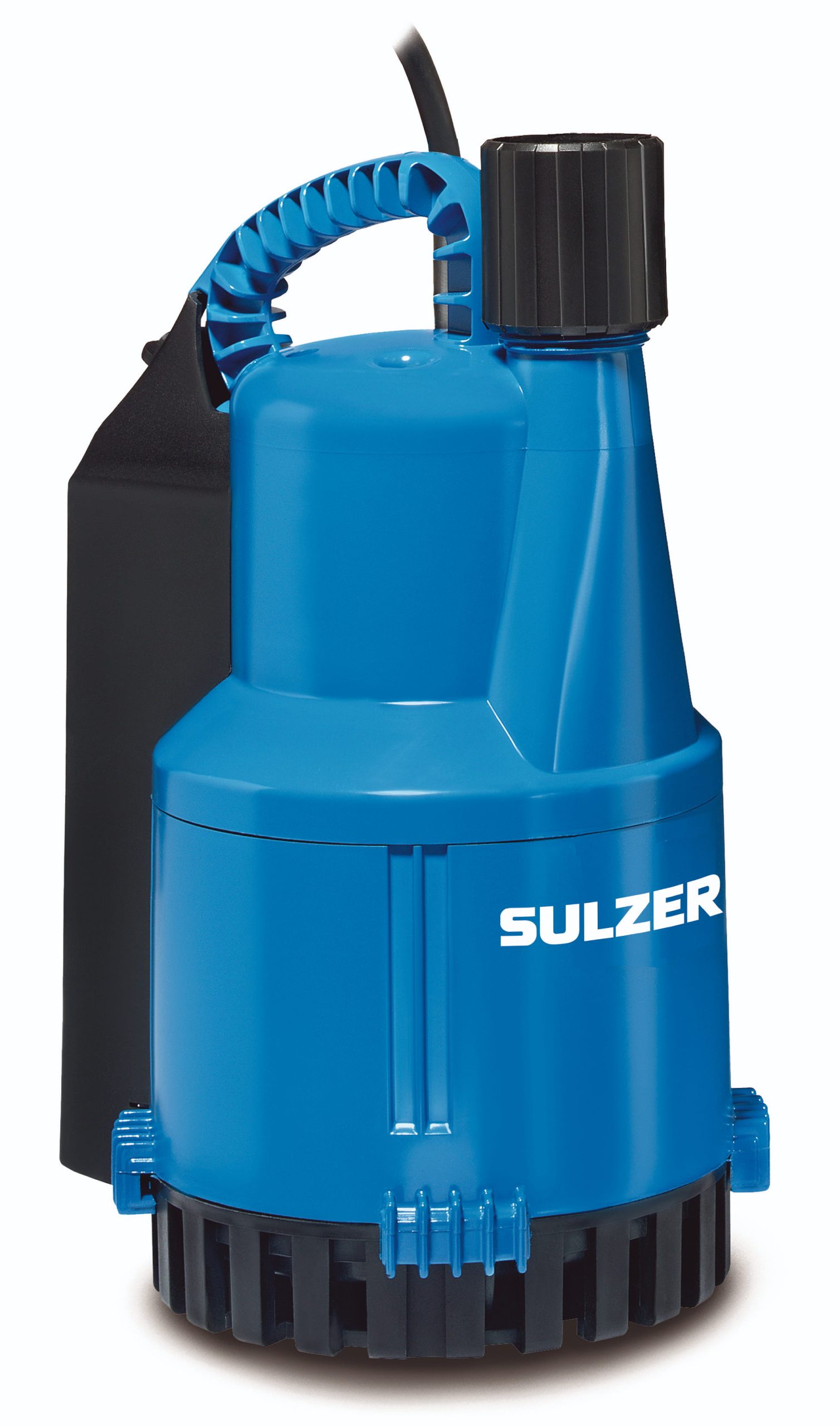

Light drainage pump type ABS Robusta

For the smaller pumping challenges

The Robusta 200 and 300 models are plug-in, submersible pumps designed to remove wastewater containing solids up to 10 mm. The pump and motor form a pressure-tight encapsulated fully flood-proof unit.

MAIN BENEFITS

Pumps down to 3 mm when the detachable suction ring is fitted into the screen

Easy installation with Schuko plug and 10 m cable

Automatic operation with built-in float switch for reliable operation

Backflow is prevented with built-in check valve

Fits in small sumps from 300 x 300 mm

Suitable for both manual and automatic operation with the unique hand/auto switch

MAIN APPLICATIONS

Domestic and commercial wastewater without toilet waste

Drainage of pits and flooded cellars

  1. Thermal sensors
  2. Three lip seals lubricated by a grease chamber
  3. Protection type IP 68
  4. Stainless steel rotor shaft supported in lubricated-for-life ball bearings
  5. Motor housing made of corrosion-resistant material, and the outer jacket and impeller of durable plastics

Capacity

up to 12 m3/h

Head

up to 8.5 m

Temperature

40°C up to 60°C

Discharge size

G 1¼”

Maximum speed of rotation

2,900 rpm

Technical Data Sheet – ABS Robusta Light Drainage Pump 200 and 300

Robusta_200_300_TDS_EN
