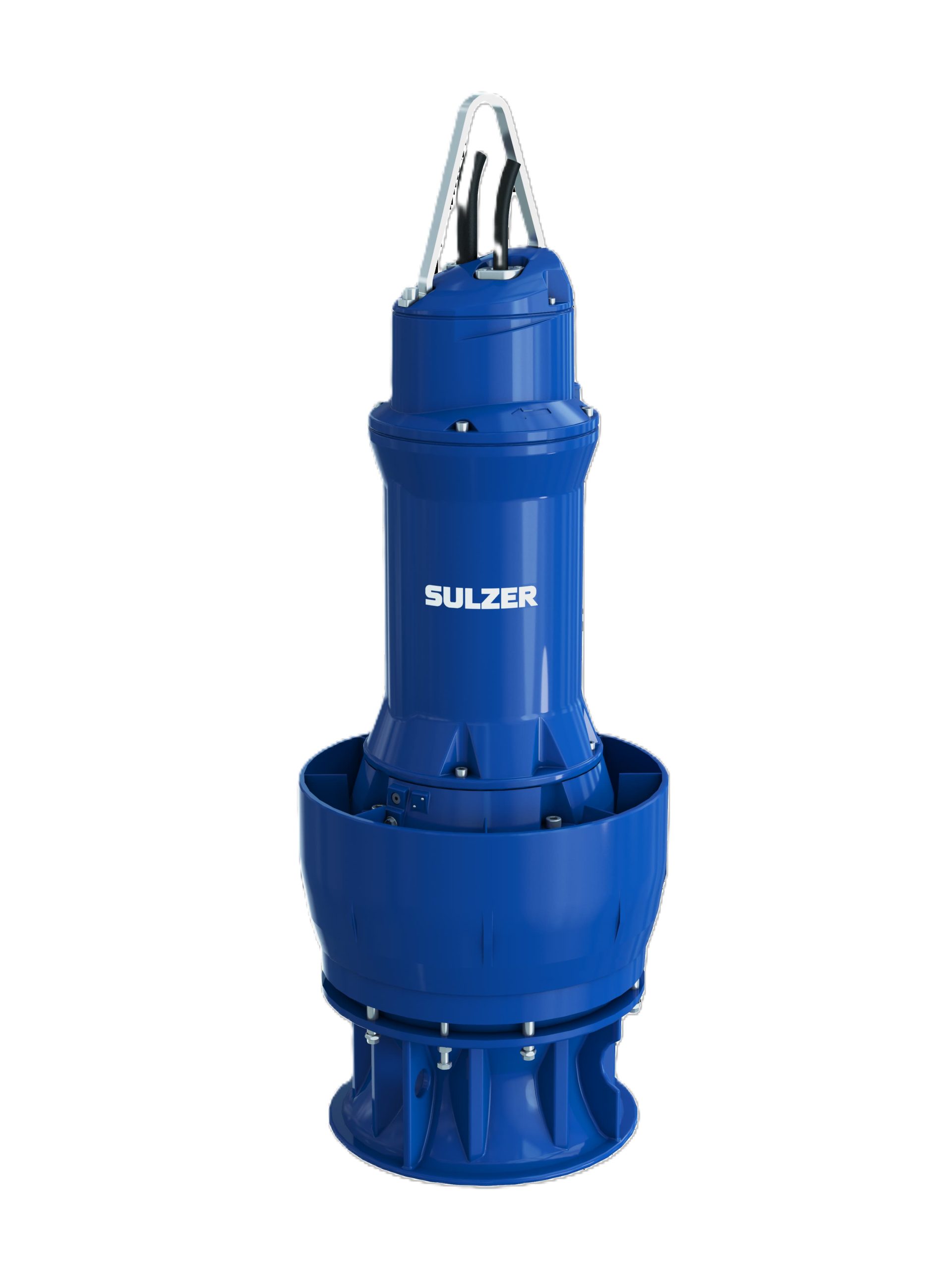

Submersible mixed flow column pump type ABS AFLX

Pumping large volumes up to moderate heads

The submersible mixed-flow column pump type ABS AFLX equipped with an IE3 motor is designed for use where large volumes of process water or wastewater containing solid effluent must be pumped up to moderate heads. Premium Efficiency motors combined with efficient three- to five-blade mixed-flow impellers with low NPSH characteristic impeller design, ensure high reliability and efficiency.

MAIN BENEFITS

Axial-Flow Pumps equipped with Premium Efficiency IE3 motors ranging from 7.5 to 500 kW for 50Hz

Pumps available with motor power up to 500kW for 50 Hz can optionally be equipped with planetary gear boxes

Equipped with highly efficient three- to five-blade open type mixed-flow impellers

Mixed-flow impellers with Low-NPSH design

Designed for direct installation in the discharge pipe or in the concrete risers to save space and reduce installation costs, using the well-proven coupling ring

Improved energy savings

Long-term reliability

MAIN APPLICATIONS

Water

Storm water

Land drainage

Flood protection

Wastewater from commercial and industrial sources

Sewage containing solids

  1. Premium Efficiency IE3 motors in acc. with IEC60034-30
  2. Class H (140°C) insulation
  3. NEMA class A up to 110 kW, above NEMA class B
  4. Double silicon mechanical seal
  5. Seal protection against spinning fibers
  6. 100 000 hours bearing life
  7. Sealed cable connection chamber with two stage cable entry
  8. Lifting hoop (stainless steel as option)
  9. Condition monitoring (temperature, water ingress, option: vibration monitoring)
  10. Explosion-proof version as option (ATEX, FM or CSA)
  11. Planetary gearboxes, driven by four-pole motors, deliver higher efficiency and lower weight compared to high-pole motors

Discharge sizes

DN 600 to DN 1200

Pipe diameters

600 to 1,200 mm (50 Hz)

Capacities

up to 3,100 l/s (50 Hz)

Heads

up to 35 m (50 Hz)

Motor power

7.5 to 500 kW (50 Hz)

Technical Data Sheet – Submersible mixed flow column pump type ABS AFLX PE3-PE6

AFLX_PE3_PE6_TDS_EN

Technical Data Sheet – Submersible mixed flow column pump type ABS AFLX PE7

AFLX_PE7_TDS_EN
